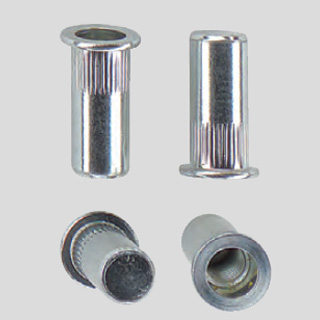

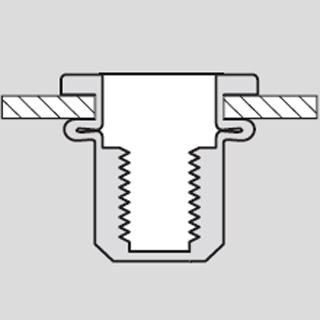

Заклепки-гайки MFX 23-CG (MASTERGRIP) - закрытого типа, цилиндрическая головка
Сталь оцинкованная
Узнать цену на Заклепки-гайки MFX 23-CG
| [+0,5/-0] | [+0/-0,5] | [+0/-0,2] | |||||||
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | ||||||
| M3∅ 5,0 | 15,0 16,0 |
0,5-2,5 2,5-4,0 |
23M03CG1 CG2 |
7,0 | 0,9 | 4,9 | 3,0 | 4.900 | 900 |
| M4∅ 6,0 | 16,0 19,0 |
0,5-3,0 3,0-5,5 |
23M04CG1 CG2 |
9,0 | 1,1 | 5,9 | 4,5 | 7.840 | 1.660 |
| M5∅ 7,0 | 18,5 21,5 24,5 |
0,5-3,0 3,0-5,5 5,5-8,0 |
23M05CG1 CG2 CG3 |
10,0 | 1,1 | 6,9 | 7,8 | 11.070 | 2.760 |
| M6∅ 9,0 | 21,5 24,0 26,5 |
0,5-3,0 3,0-5,5 5,5-8,0 |
23M06CG1 CG2 CG3 |
12,0 | 1,6 | 8,9 | 20,0 | 17.640 | 3.430 |
| M8∅ 11,0 | 26,0 28,5 31,0 33,5 |
0,5-3,0 3,0-5,5 5,5-8,0 8,0-10,5 |
23M08CG1 CG2 CG3 CG4 |
15,0 | 1,6 | 10,9 | 29,0 | 27.440 | 4.410 |
| M10∅ 12,0 | 28,0 33,0 36,0 39,0 |
0,5-3,0 3,0-6,0 6,0-9,0 9,0-12,0 |
23M10CG1 CG2 CG3 CG4 |
16,0 | 2,1 | 11,9 | 32,0 | 29.400 | 4.900 |
